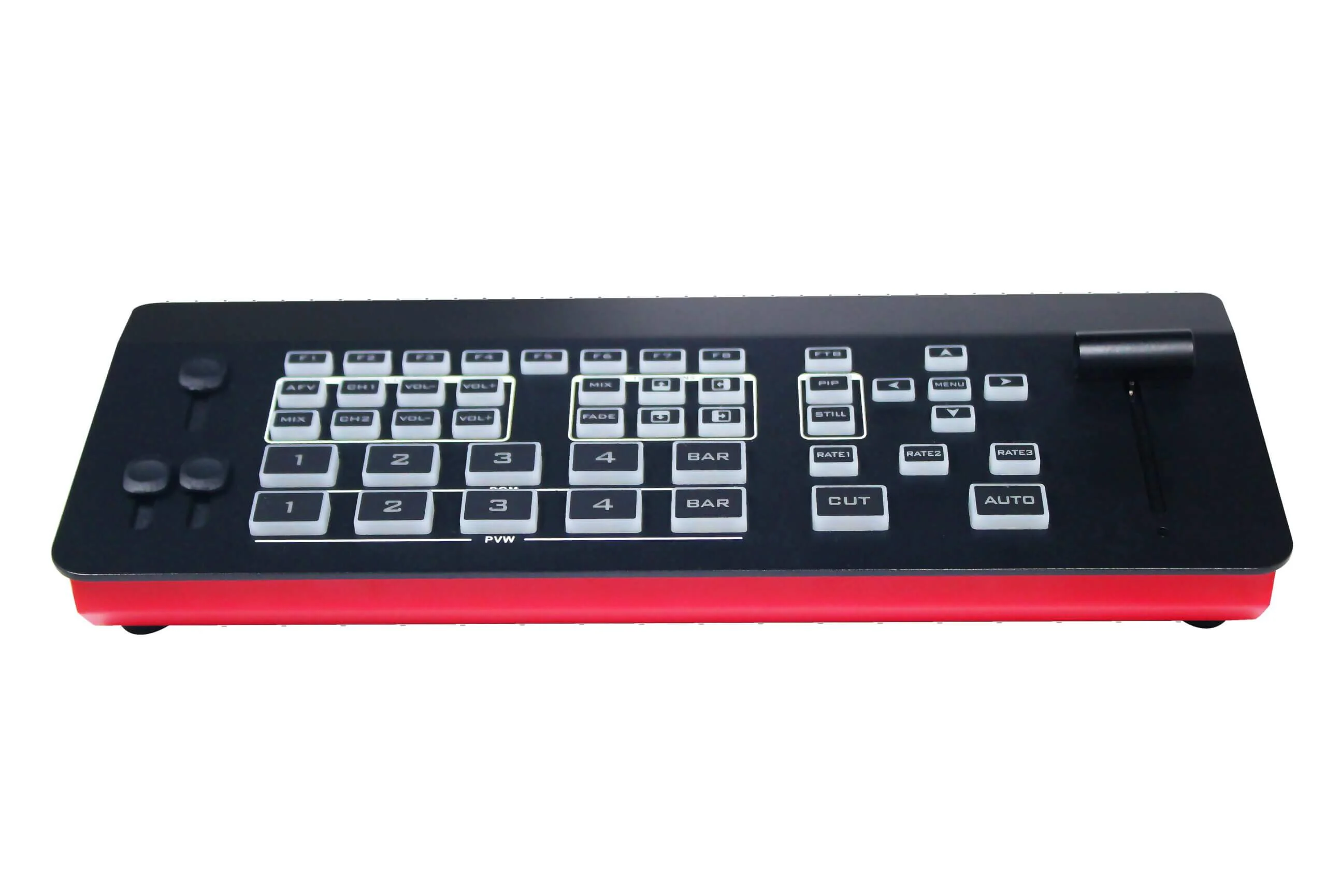

High-definition video switcher adopts a portable integrated design, metal casing, small size and light weight. Standard size: 280mm * 110mm * 47mm, which can be used for small-scale out-of-field video effects switching requirements. The device integrates multiview processor, special effect generator, audio processor, control keyboard and other common components of the switcher.
Switcher supports 4 HDMI + 1 DP signal inputs, a total of 5 video signals. The external preview signal can be output simultaneously. The switcher supports HDMI embedded audio + external analog audio. After mixed processing, it can be embedded in the output HDMI signal or output from the analog port. The resolution of all input signals is automatically adapted, and the output signal resolution can be selected according to requirements, which is quite flexible. For the needs of video switching such as radio and television, program production, live production of interviews and lectures, outdoor sports events, and school courseware production, the functions of the switcher can be fully met.

◆ Portable integrated design
◆Metal body, high strength and light
weight
◆ Integrated control keyboard
◆ Support up to 4 HDMI + 1 DP inputs
◆ 2 stereo MIC inputs
◆1 LINE IN input
◆ 1 LINE OUT output
◆ Support 1 USB output video stream,
clear picture quality
◆ Support PC remote control
◆ The equipment comes with color bar
output screen
◆ Support audio follow, mix function
◆ Support HDMI audio de-embedding
◆ PGM output: 1 HDMI
◆ Multiview output: 1 HDMI
◆ Support special effects switching such as MIX / FADE
◆ Support CUT hard cut, support AUTO special effect
switching
◆ Support Tally / Network control
◆ Support still function
◆ Support PIP window function
◆ Support vertical menu output, must
be used with PM1005, PM1007
